PCB High-Power Terminal Blocks

BlockMaster Electronic’s High-Power Terminal Blocks series start at 30A @ 300V and are available up to 130A @ 600V.  For added protection, we offer clear plastic covers for field installation. All of our products have UL approval and are RoHS compliant.

BlockMaster P/NProduct ImageData Sheet Catalog PageProduct DrawingVoltageCurrentPitchMin PolesMax Poles

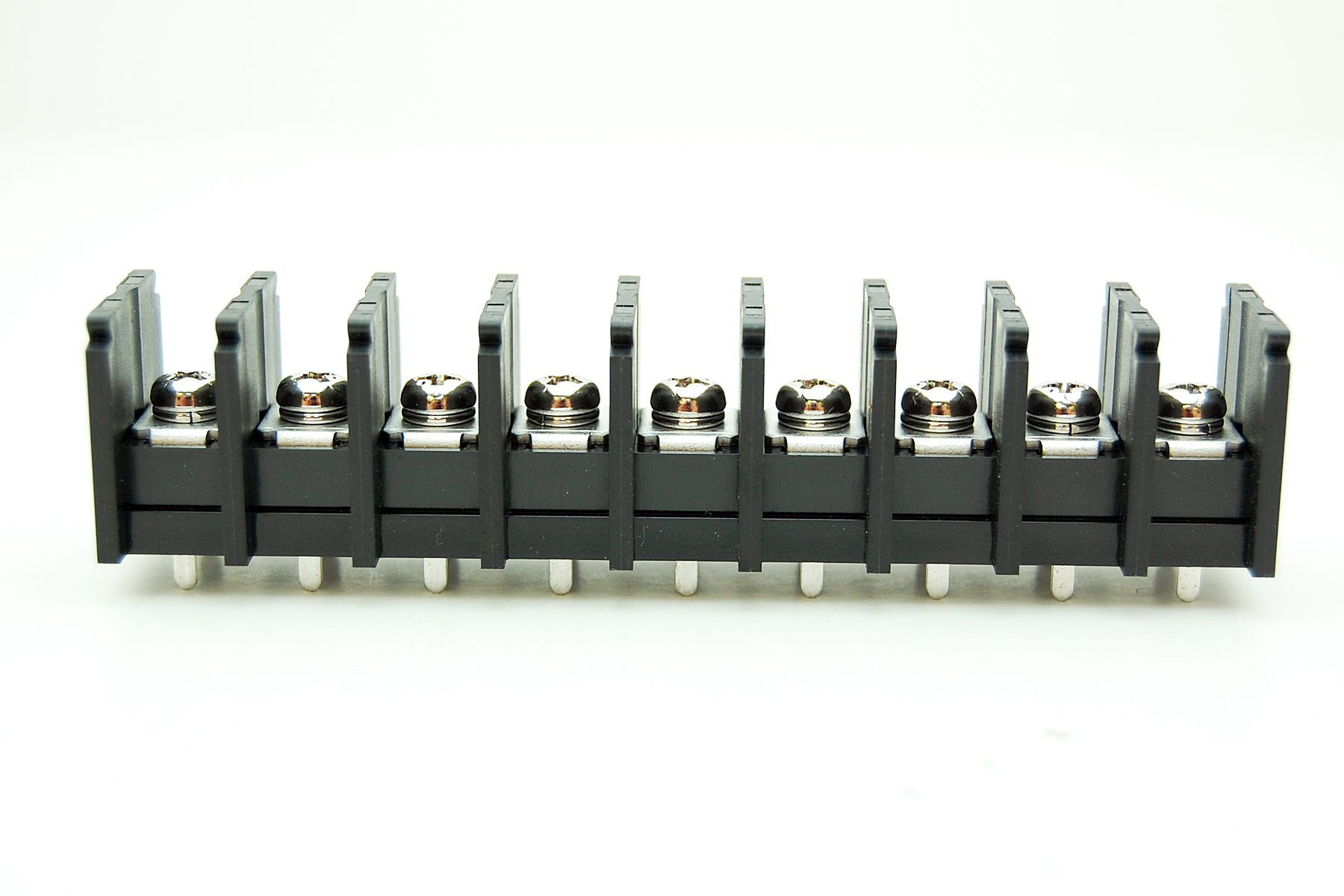

OULP-930-B-XXP‡OULP-930Data SheetProduct Drawing300V30A11mm
0.433”		225
OULP-930-M-XXP‡OULP-930Data SheetProduct Drawing300V30A11mm
0.433”		225

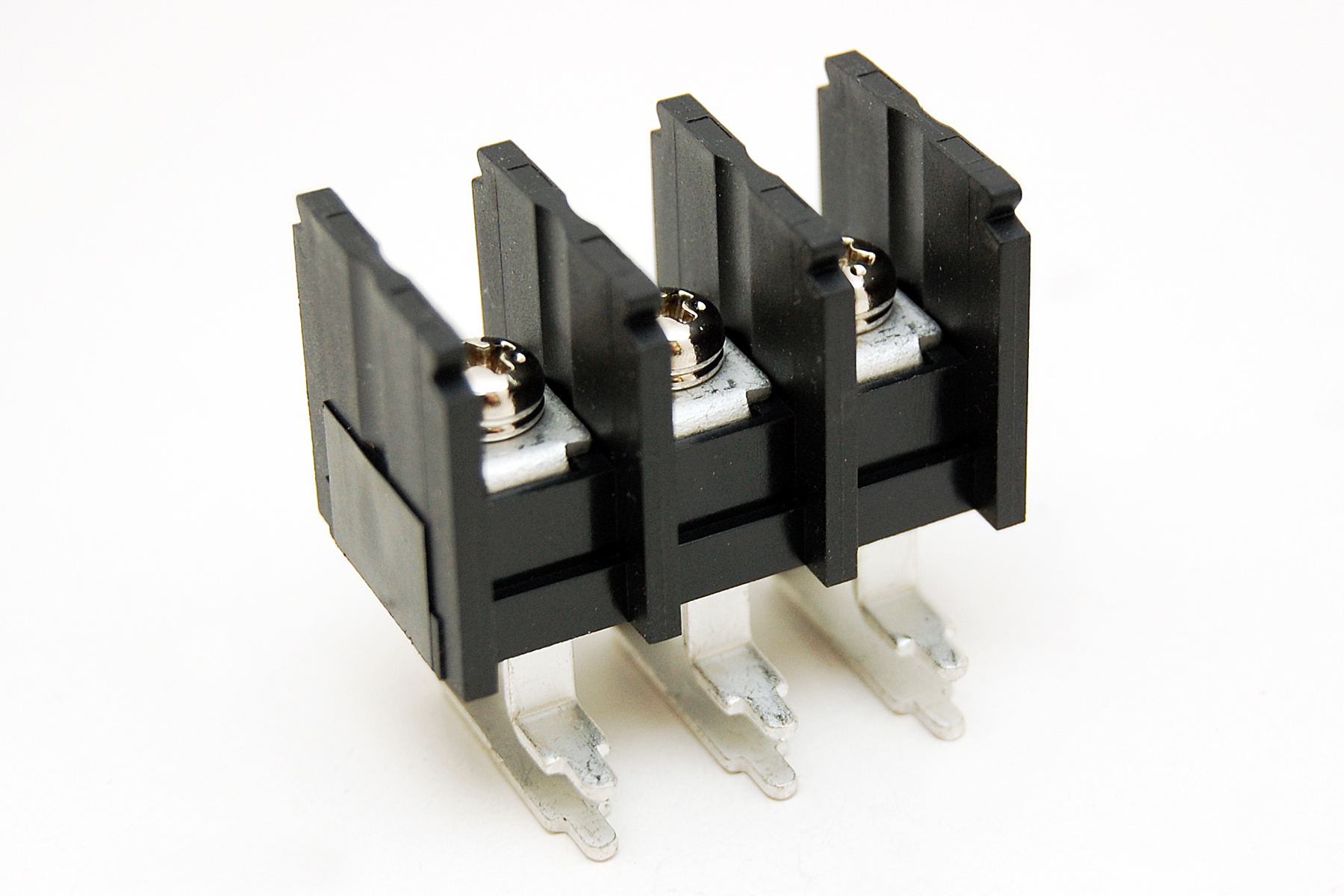

OULP-936-B-XXP‡OULP-936Data SheetProduct Drawing300V40A11mm
0.433”		225
OULP-936-M-XXP‡OULP-936Data SheetProduct Drawing300V40A11mm
0.433”		225

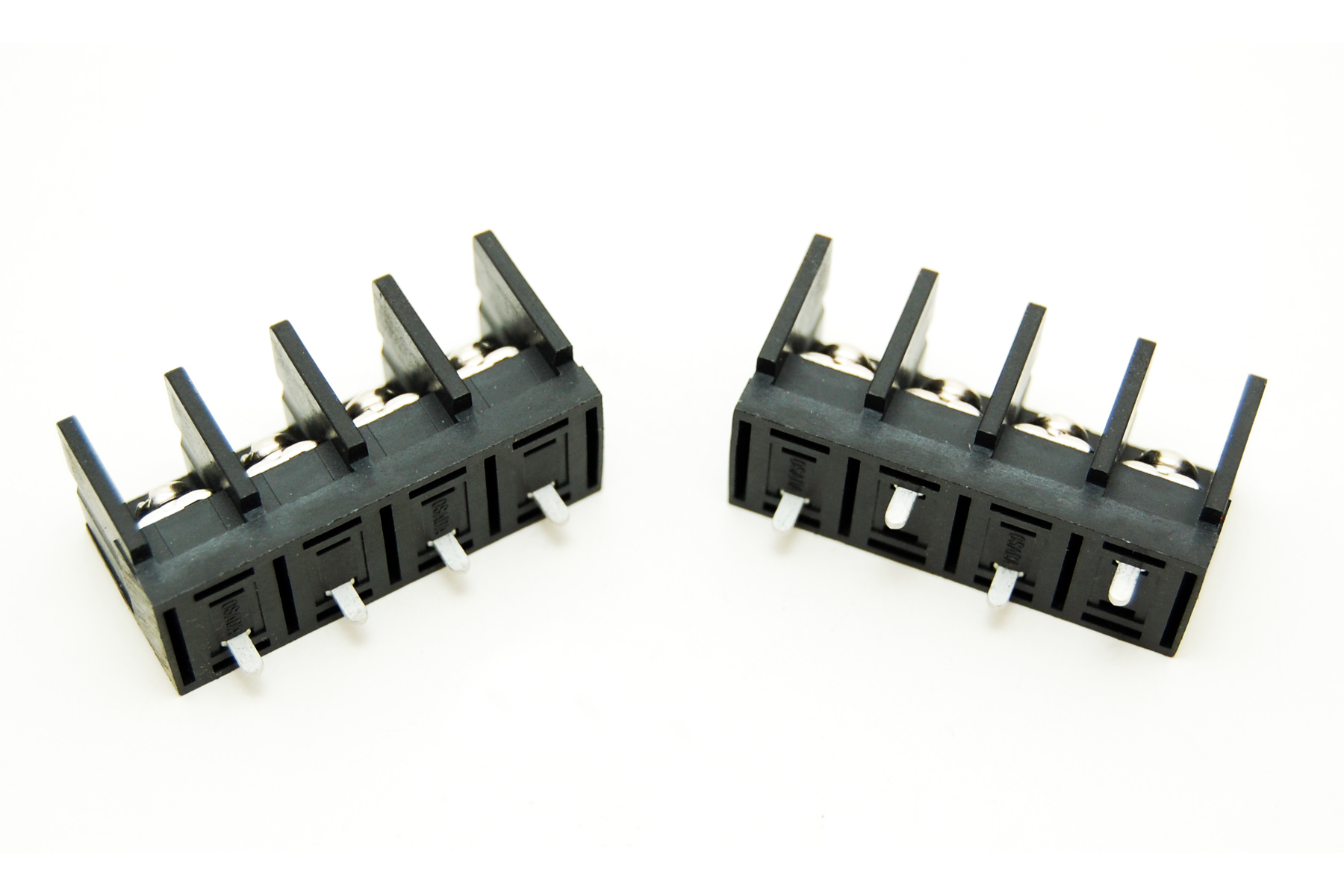

OULP-947-B-XXPOULP-947Data SheetProduct Drawing300V30A11mm
0.433”		225
OULP-947-M-XXPOULP-947Data SheetProduct Drawing300V30A11mm
0.433”		225
OULP-948-B-XXPOULP-948Data SheetProduct Drawing600V30A11mm
0.433”		225
OULP-948-M-XXPOULP-948Data SheetProduct Drawing600V30A11mm
0.433”		225

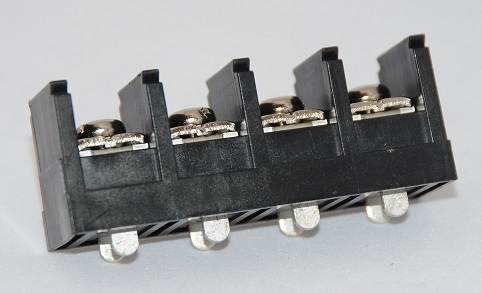

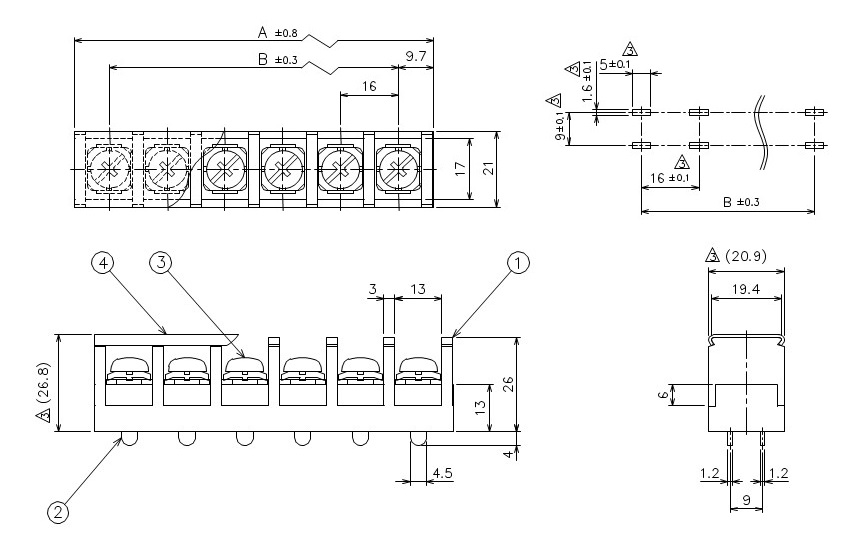

OTB-910-B-XXP‡OTB-910-BData SheetProduct Drawing600V115A16mm217

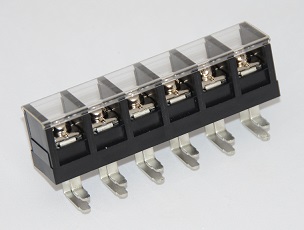

OTB-910-BL-XXP‡OTB-910-BLData SheetProduct Drawing600V115A16mm217

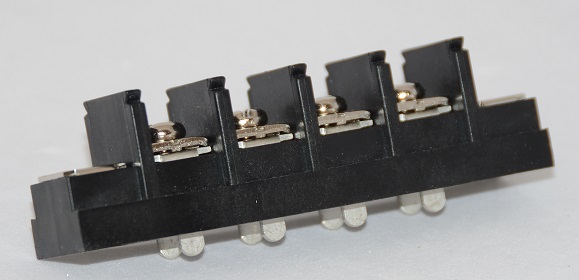

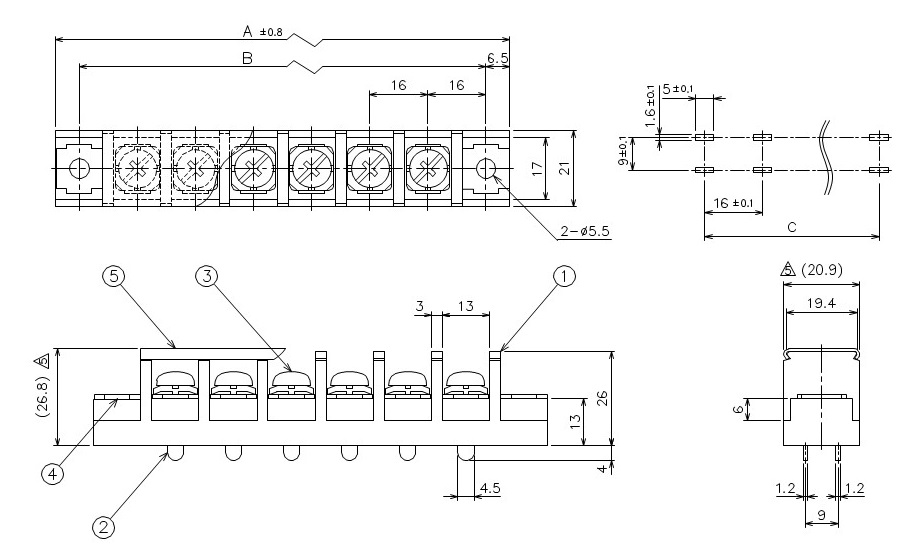

OTB-910-M-XXP‡OTB-910-MData SheetProduct Drawing600V115A16mm217

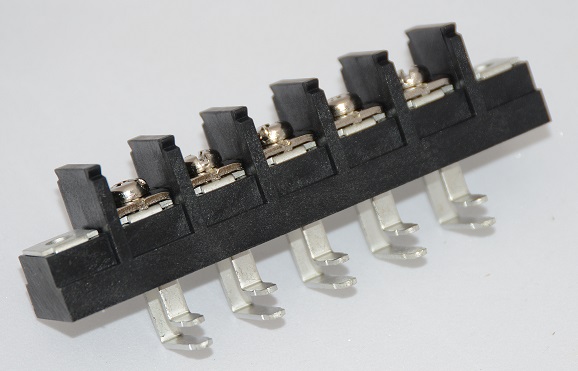

OTB-910-ML-XXP‡OTB-910-MLData SheetProduct Drawing600V115A16mm217

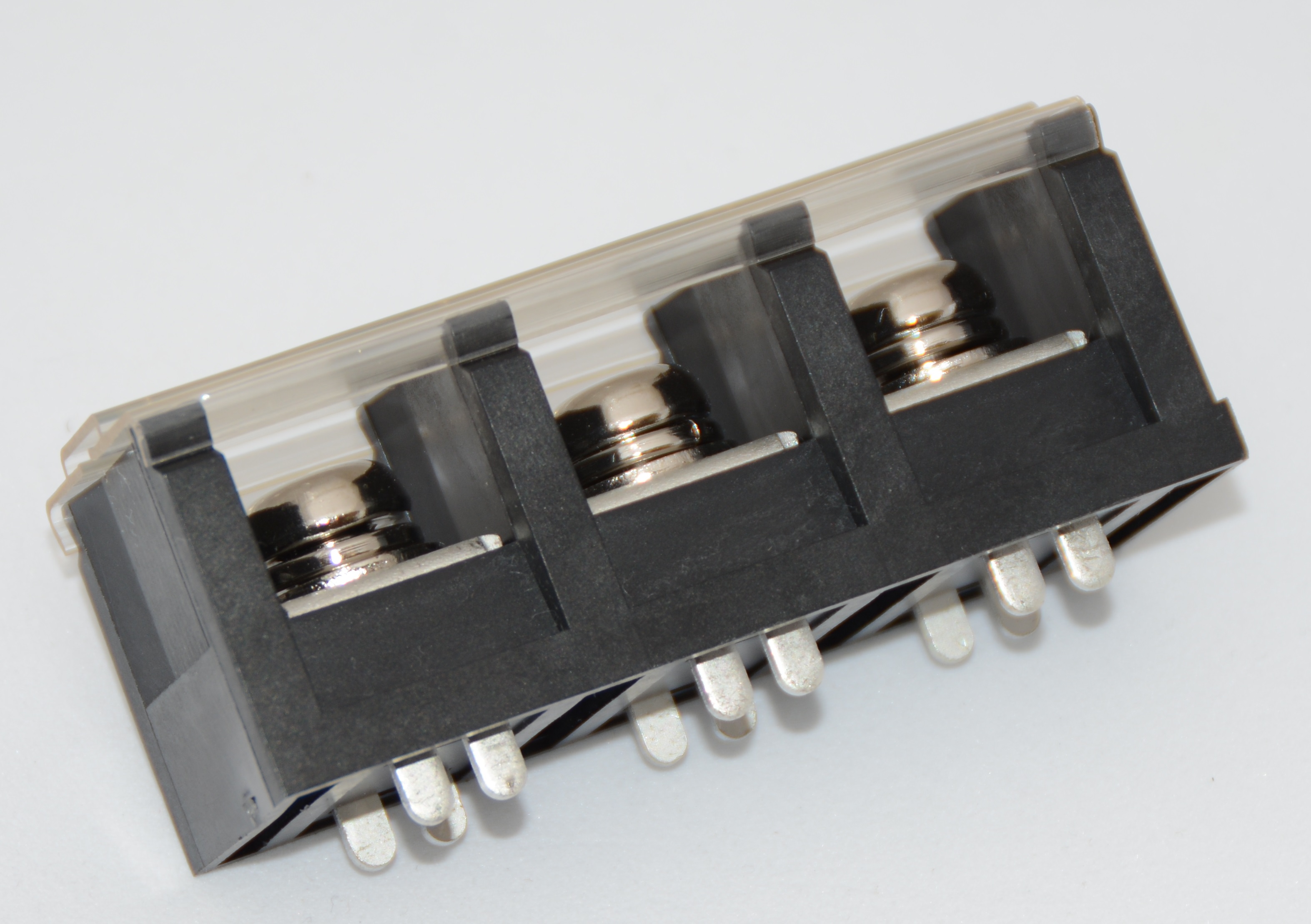

OTB-1500N-XXP‡OTB-1500NData SheetProduct Drawing600V130A26mm210

‡ Indicates snap on clear cover option
