Double Row Barrier Terminal Blocks
BlockMaster Electronics’ Double Row and Turret Barrier Blocks are a valuable option for mounting on non-conductive surfaces. Available from 10A-75A, 250V-600V. 7.5mm, 9.5mm, 11mm, 14mm and 17.45mm. Phillips/Slotted combo head screws, nickel plated. Value added services include adding 0.187” or 0.250” QC Terminals and jumpers.
| Item | Image | Data Sheet | Drawing | Voltage | Current | Pitch | Poles Min | Poles Max |
|---|---|---|---|---|---|---|---|---|

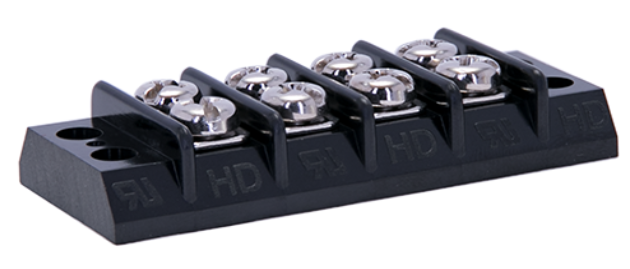

| DG99-A-XXP-13-00A(H) |  | Data Sheet | Product Drawing | 600V | 75A | 17.45mm | 2 | 12 |

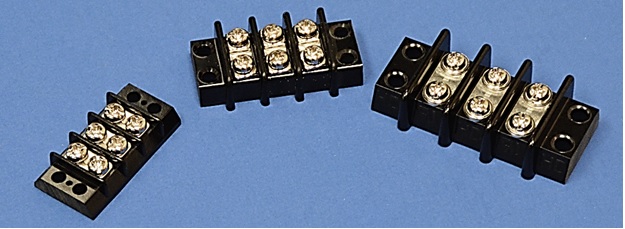

| HD-10A-XXP |  | Data Sheet | Product Drawing | 250V | 10A | 9.5mm | 2 | 24 |
| HD-20A-XXP | | Data Sheet | Product Drawing | 250V | 20A | 11mm | 2 | 24 |
| HD-30A-XXP | | Data Sheet | Product Drawing | 600V | 40A | 14mm | 2 | 24 |
| HP-T3048A-3-2P |  | Data Sheet | 250V | 25A | 7.5mm | 2 | 2 | |
| HP-T3048A-3-4P |  | Data Sheet | 250V | 25A | 7.5mm | 4 | 4 | |
| HP-T3048A-3-6P |  | Data Sheet | 250V | 25A | 7.5mm | 6 | 6 |
